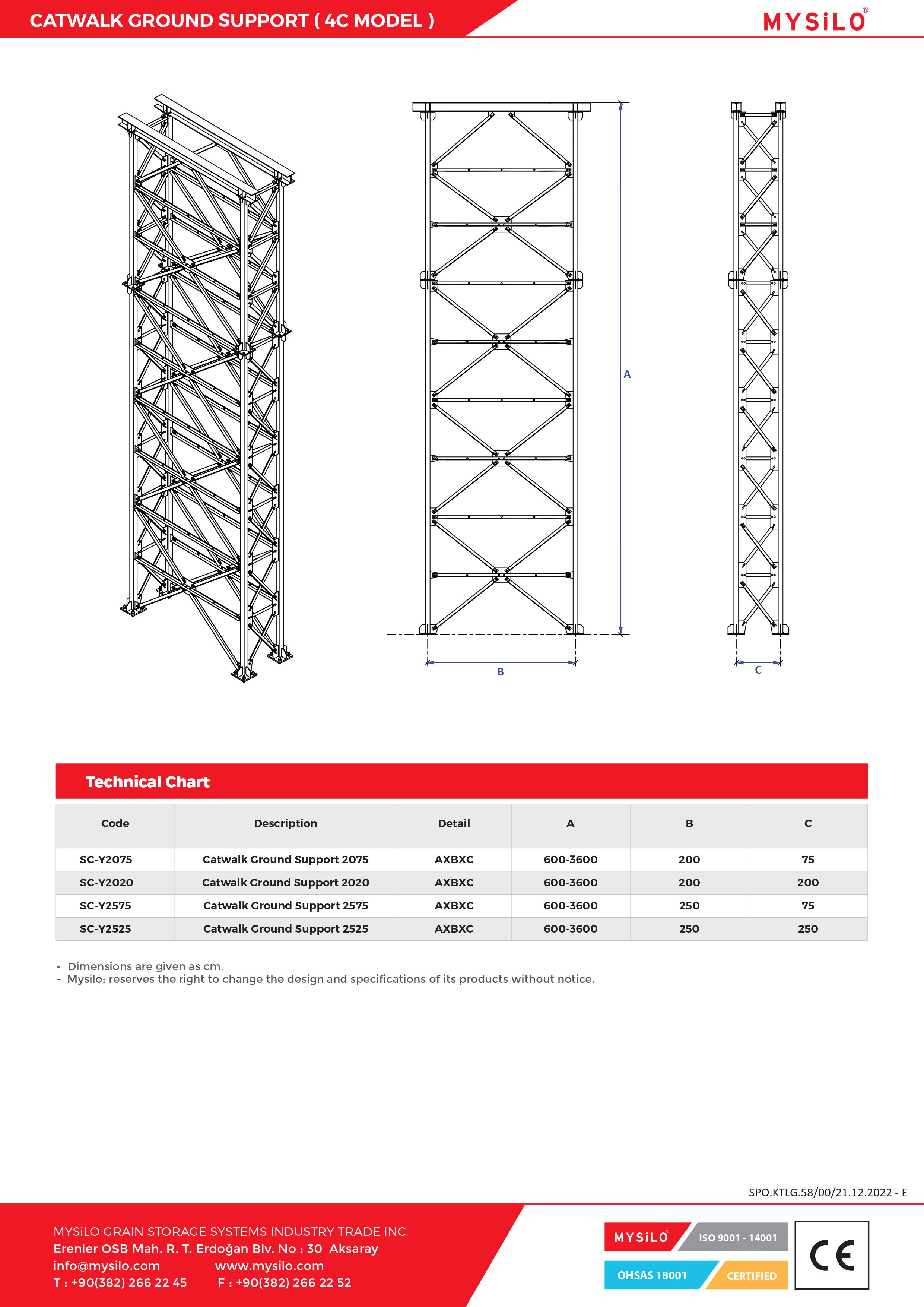

Catwalk ground supports are designed to cary conveyors and catwalks. They can be custom-made according to specific requirements. Coating
• Painted (RAL-7035 light gray) & Hot Dip Galvanized EN ISO 1461
Paint
• Epoxy Primer (Ral 7650) + Acrylic Top Coat (Ral 7035) (Min 80 μm)
• Hot Dip Galvanized EN ISO 1461”
Material and Section Specifications Sections
• Column Sections: Box Profile
• Horizontal and Cross Sections: Box and Angle Profile
Material Quality
• Profile and Plate Materials: S235JR
• Column and Beam Materials: S235JR, S275JR
Bolt Quality
• 8.8”
Snow Load
• 75 kg/m2
Wind Load
• 145 km/h
Design Standards
• TBDY 2018 (Turkish Building Earthquake Regulation)
• TS 498 (Design loads for sizing structural members) Design, Analysis, and Construction Principles of Steel Structures (AISC-360-10)
• ÇYTHYE-2018: Design, Analysis, and Construction Principles of Steel Structures
• TS EN 1991-1-3 Eurocode 1: Snow loads
• TS EN 1991-1-4 Eurocode 1: Wind loads
